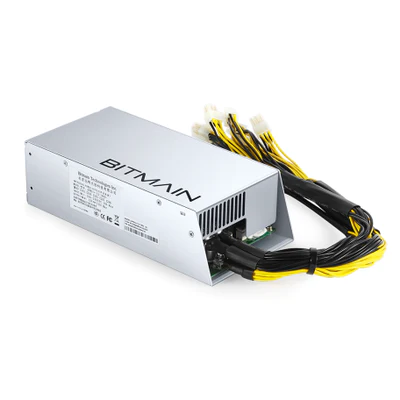

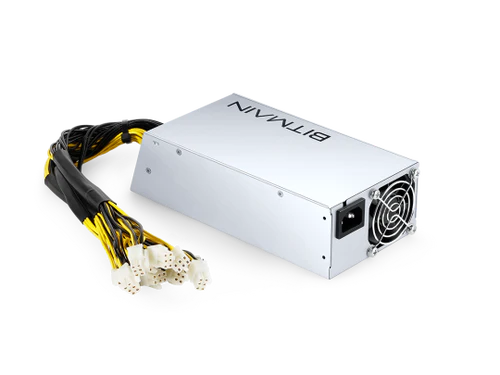

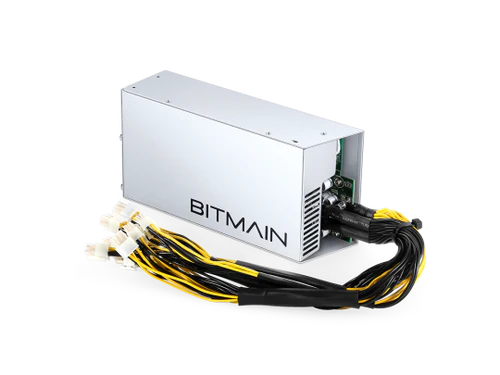

Bitmain APW7 1800W 110-220V PSU

Specifications: Bitmain APW7 1800W 110-220V PSU

• Output:
  • DC Voltage: 12.0V
  • Rated Current (200-240V input): 150A
  • Rated Power (200-240V input): 1800W
  • Rated Current (100-140V input): 67A
  • Rated Power (100-140V input): 800W
  • Ripple & Noise: <1%
  • Voltage Accuracy: 12.0-12.5V
  • Line Regulation: <1%
  • Load Regulation: <1%
  • Setup Time: <2S
  • Short Circuit Protection: >10mS
• Input:
  • Voltage Range: 100-140 /200-240V AC
  • Frequency Range: 50/60Hz
  • Power Factor: >0.99(full load)
  • Leakage Current: <1.5mA (220V 50Hz)
  • Protection:
    • Low-voltage Input: 80-89V AC
    • Output Short Circuit: Yes
    • Output Overcurrent: 150-200A
    • Overheat Protection: Yes

• Environment:

  • Operating Temperature: -20-60℃
  • Operating Humidity: 20%-90%RH (non-condensing)
  • Altitude: < 2000m
• Structure:
  • Dimensions: 20611062mm
  • Weight: 2.0kg
  • Cooling System: Forced-air cooling
  • Noise: 43DB

240V 346A 50KW ASIC Mining Panel PDU System for Cryptocurrency Mining

APW7 Output Power VS Input Voltage Derating Curve
