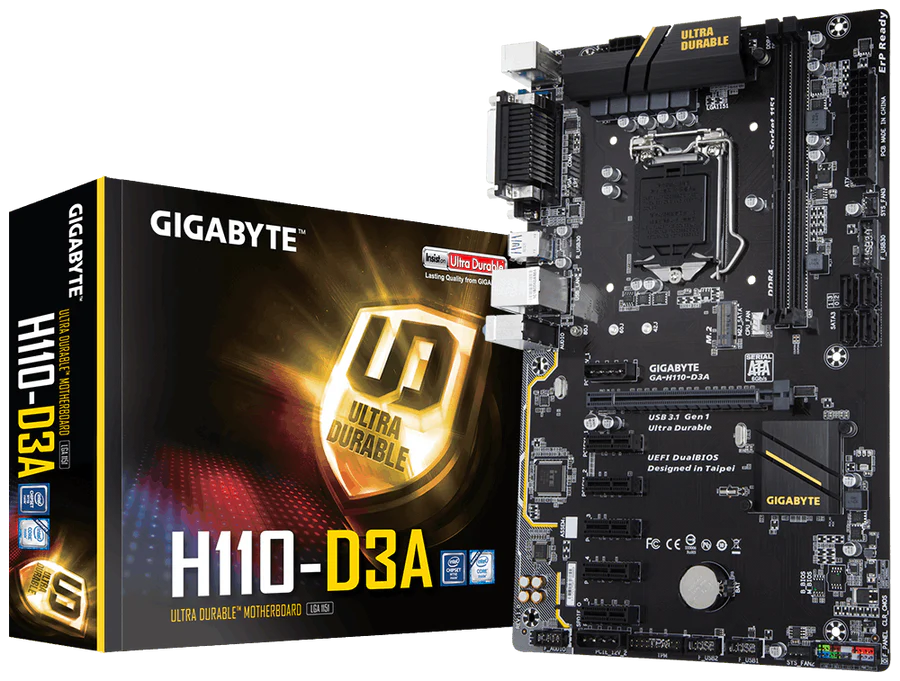

GIGABYTE GA-H110-D3A rev. 1.0 LGA 1151 Intel H110 ATX Motherboard

GIGABYTE GA-H110-D3A rev. 1.0 LGA 1151 Intel H110 ATX Motherboard

bios introduces a built-in mining mode, effortlessly recognizing all 6 cards, streamlining your mining operations.

CPU Supports 7th/6th Generation Intel® Core™ i7 processors, Intel® Core™ i5 processors, Intel® Core™ i3 processors, Intel® Pentium® processors, Intel® Celeron® processors in the LGA1151 package. L3 cache varies with CPU. Refer to CPU Support List for detailed information.

Chipset Powered by the Intel® H110 Express Chipset.

Memory Equipped with 2 x DDR4 DIMM sockets, accommodating up to 32 GB of system memory. Note: Due to limitations of a Windows 32-bit operating system, installed physical memory exceeding 4 GB may display reduced memory size. Supports dual channel memory architecture, DDR4 2400/2133 MHz memory modules, ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules, and Extreme Memory Profile (XMP) memory modules. Installation of a 7th generation processor is required to support 2400 MHz or XMP memory.

Onboard Graphics Integrated Graphics Processor – Intel® HD Graphics with support for 1 x D-Sub port, offering a maximum resolution of 1920×1200@60 Hz. Maximum shared memory of 1 GB.

Audio Employs Realtek® ALC887 codec, delivering High Definition Audio with support for 2/4/5.1/7.1-channel configurations. Configuring 7.1-channel audio necessitates the use of an HD front panel audio module and enabling the multi-channel audio feature through the audio driver. Supports S/PDIF Out.

LAN Integrated with Realtek® GbE LAN chip (10/100/1000 Mbit).

Expansion Slots Features 1 x PCI Express x16 slot operating at x16 conforming to PCI Express 3.0 standard, and 5 x PCI Express x1 slots conforming to PCI Express 2.0 standard.

Storage Interface Includes 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA SSD support) and 4 x SATA 6Gb/s connectors. Refer to the installation notices for the M.2 and SATA connectors. GIGABYTE GA-H110-D3A rev. 1.0 LGA 1151 Intel H110 ATX Motherboard

USB Comes with 4 x USB 3.1 Gen 1 ports and 6 x USB 2.0/1.1 ports. Internal USB headers provide additional connectivity options.

Internal I/O Connectors Comprises various connectors including 24-pin ATX main power connector, 8-pin ATX 12V power connector, PCIe power connectors, CPU fan header, system fan headers, SATA connectors, M.2 Socket 3 connector, front panel header, front panel audio header, S/PDIF Out header, USB headers, Trusted Platform Module (TPM) header, and Clear CMOS jumper.

Back Panel Connectors Features PS/2 mouse port, PS/2 Keyboard port, parallel port, serial port, D-Sub port, USB ports, RJ-45 port, and audio jacks (Line In, Line Out, Mic In).

I/O Controller Includes iTE® I/O Controller Chip. GIGABYTE GA-H110-D3A rev. 1.0 LGA 1151 Intel H110 ATX Motherboard

H/W Monitoring Monitors voltage, temperature, and fan speed, offering overheating and fan fail warnings, along with fan speed control.

BIOS Equipped with 2 x 64 Mbit flash and licensed AMI UEFI BIOS, supporting DualBIOS™ and various standards including PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0.

Unique Features Supports APP Center with various applications, including 3D OSD, @BIOS, Ambient LED, AutoGreen, Cloud Station, EasyTune, Fast Boot, ON/OFF Charge, Smart TimeLock, Smart Keyboard, Smart Backup, System Information Viewer, USB Blocker, Q-Flash, and Xpress Install.

Bundle Software Includes Norton® Internet Security (OEM version) and cFosSpeed.

Operating System Compatible with Windows® 10 64-bit (for 7th Generation Intel® Processors) and Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bit (for 6th Generation Intel® Processors). Download the Windows USB Installation Tool from GIGABYTE’s website for Windows 7 installation. Antminer HS3 9T

Form Factor ATX Form Factor measuring 30.5cm x 19.0cm.

Remark Linux drivers are available from chipset vendors’ or 3rd party websites due to varying Linux support conditions. Win9X/ME/2000/XP drivers may no longer be offered by most hardware/software vendors. Updates, if available, will be provided on the GIGABYTE website.
