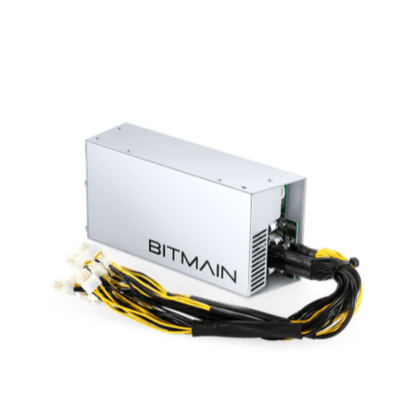

Bitmain PSU Apw3 1600w

The APW3 1600w series AC-DC Power supply has been meticulously crafted with mining endeavors in focus, amalgamating superior conversion efficiency with robust dynamic performance, all compactly packed into an energy-efficient unit. Engineered with mining rigs in mind, it offers a blend of high efficiency and powerful performance. Not only does it boast high conversion efficiency, but it also comes equipped with comprehensive protection features including short circuit, overload, overheat, low voltage, and overload protection. With its 1600w capacity and ten 6PIN connectors, the Antminer APW3 emerges as the quintessential power supply solution for cryptocurrency mining operations.

Product Specification: Bitmain PSU Apw3 1600w

• Brand: Antminer APW3 -12-1600
• Rated Power: 1600w (200V – 240V); 1200w (100V – 140V)
• Interface Type: 6PIN x 10
• Package Size: 332mm x 170mm x 125mm
• Working Voltage: 110V – 220V, Bitmain PSU Apw3 1600w

Specifications

• DC Voltage: 12.15V
• Rated Current (220V input): 133A
• Rated Current (110V input): 100A
• Rated Power (220V input): 1600W
• Rated Power (110V input): 1200W
• Ripple & Noise: <1%
• Voltage Regulation: <2%
• Source Regulation: <1%
• Load Regulation: <1%
• Setup, Rise Time: <2S
• Power off Protection Trip Time: >9mS
• Interface Type: 5 pairs of 6 pin PCI-E connectors (i.e. 10 connectors)
• Noise Level: <43DB
• Voltage Range: 100-240V AC
• Starting Voltage: 95-105V AC
• Frequency Range: 47-63Hz
• Power Factor: >0.95 (full load)
• Leakage Current: <1.5mA (220V 50Hz)
• Low-voltage Input: 80-89V AC
• Output Short Circuit: Yes
• Output Overcurrent: 134-185A max.
• Overheat Protection: Yes
• Operating Temperature: -20°C – 50°C
• Operating Humidity: 20% – 90% relative humidity (non-condensing)
• Dimensions: 220mm108mm62mm
• Fan: Forced-air cooling, Aladdin 32TH/s Bitcoin BTC Miner
