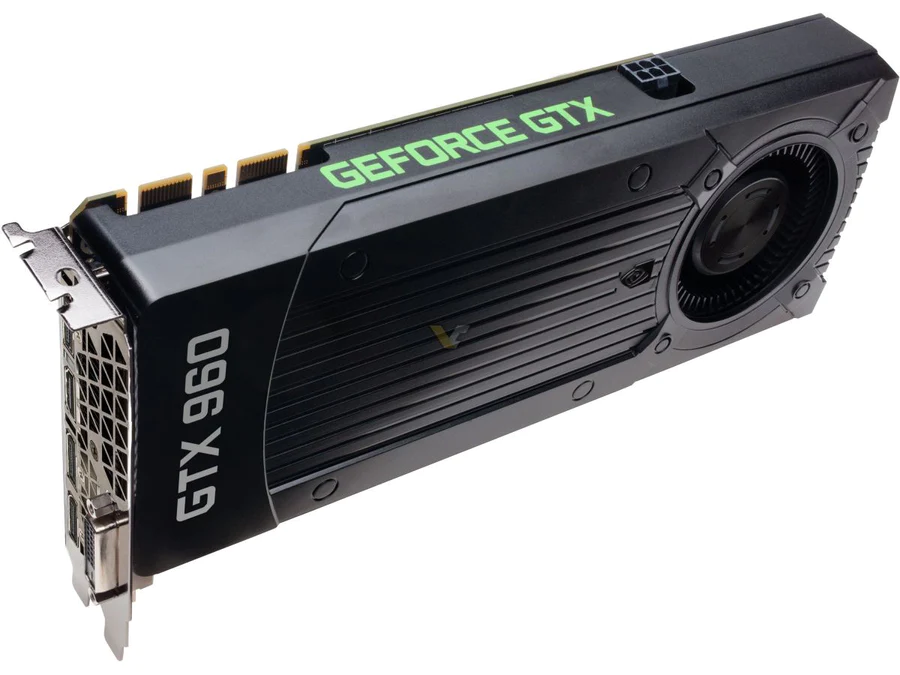

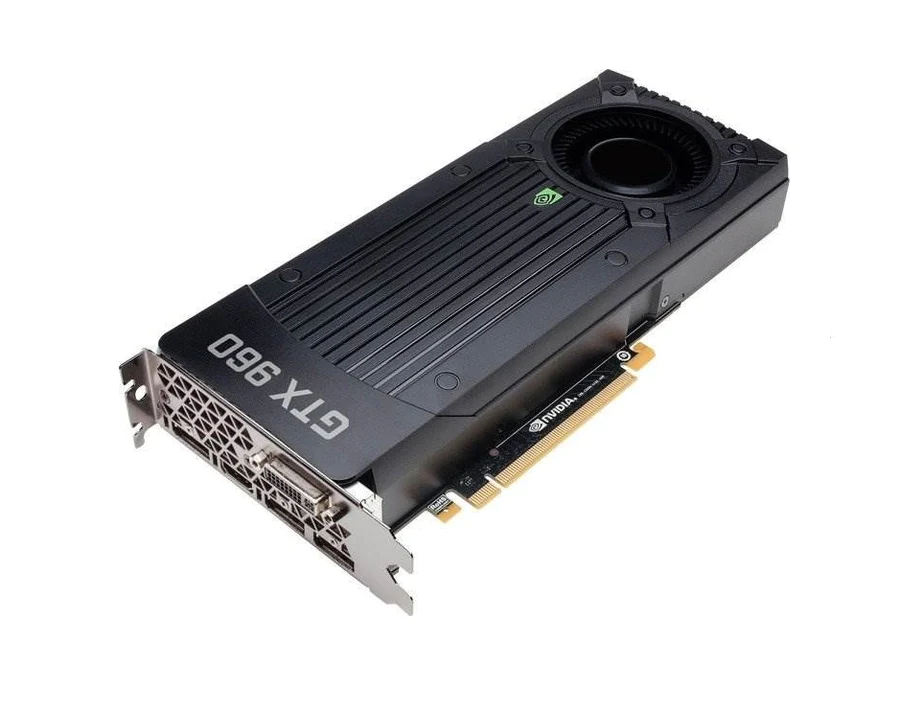

Nvidia Geforce GTX 960 GPU 2GB Graphics Card

Description: Nvidia Geforce GTX 960 GPU 2GB Graphics Card

The GeForce GTX 960, a stalwart of performance graphics, made its debut into the tech scene in January 2015. Crafted on the 28 nm process and driven by the GM206 graphics processor in its GM206-300-A1 iteration, this card heralds DirectX 12 support, ensuring seamless compatibility with contemporary gaming titles.

With its modest die area of 228 mm² and a staggering 2,940 million transistors, the GM206 processor packs a punch with 1024 shading units, 64 texture mapping units, and 32 ROPs. NVIDIA pairs this beast with 2,048 MB of GDDR5 memory via a 128-bit memory interface. Clocking in at 1127 MHz, with a turbo boost capability up to 1178 MHz, the GPU powers through tasks while the memory races along at 1753 MHz (7 Gbps effective).

This dual-slot dynamo harnesses its power through a single 6-pin power connector, with a maximum power draw rated at 120 W. For display connectivity, it offers 1x DVI, 1x HDMI, and 3x DisplayPort outputs, seamlessly integrating with other system components through a PCI-Express 3.0 x16 interface. At 241 mm in length, it flaunts a sleek dual-slot cooling solution.

CUDA Cores:

• Base Clock (MHz): 1127
• Boost Clock (MHz): 1178

Memory Specs: Nvidia Geforce GTX 960 GPU 2GB Graphics Card

• Memory Clock: 7.0 Gbps
• Standard Memory Config: 2 GB
• Memory Interface: GDDR5
• Memory Interface Width: 128-bit
• Memory Bandwidth (GB/sec): 112

Thermal and Power Specs:

• Maximum GPU Temperature (in C): 98 C
• Graphics Card Power (W): 120W
• Recommended System Power (W)*: 400W
• Supplementary Power Connectors: 1 x 6-pins
